LAP - Laser Aided Profiler

TecnoBilance

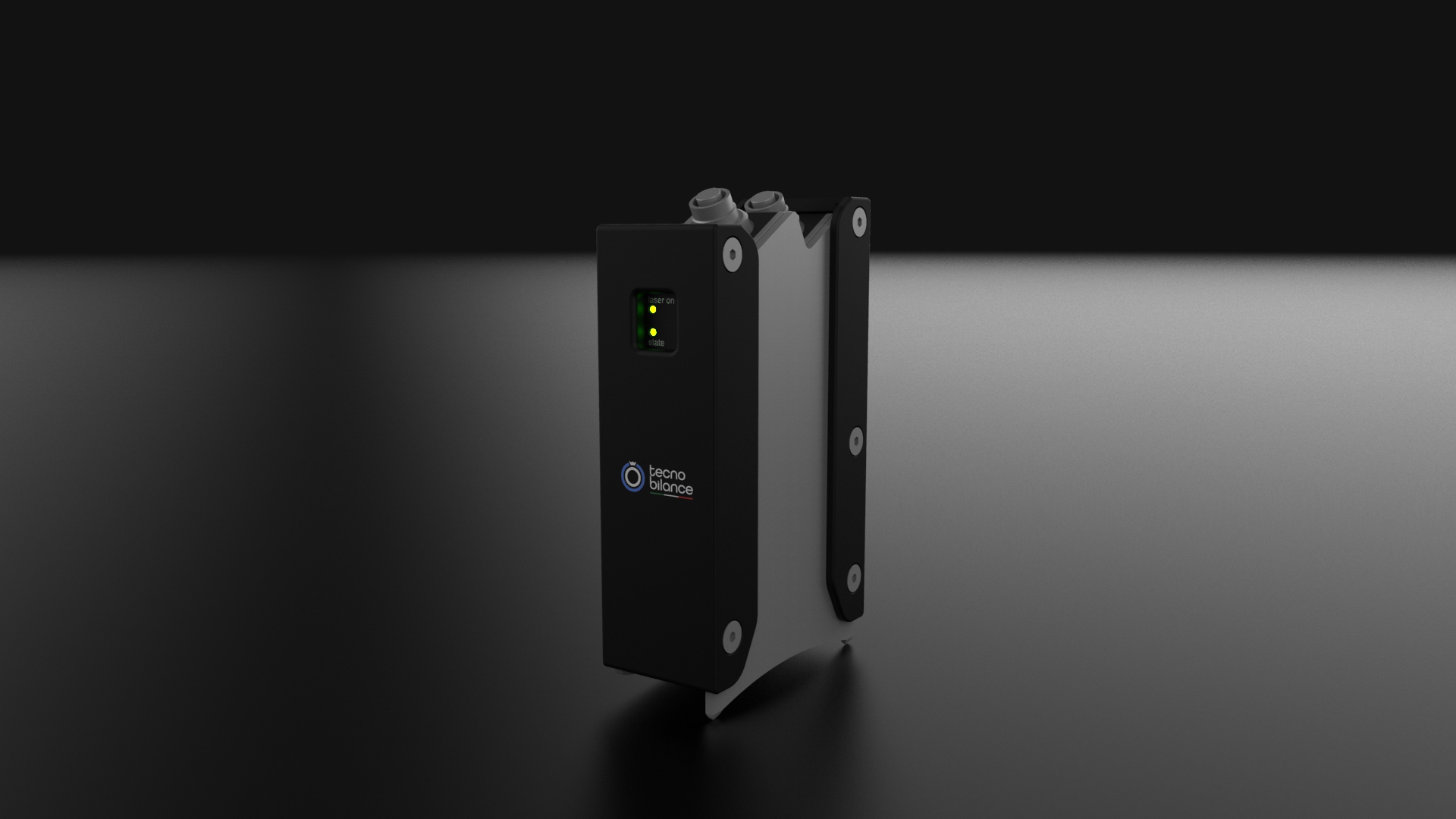

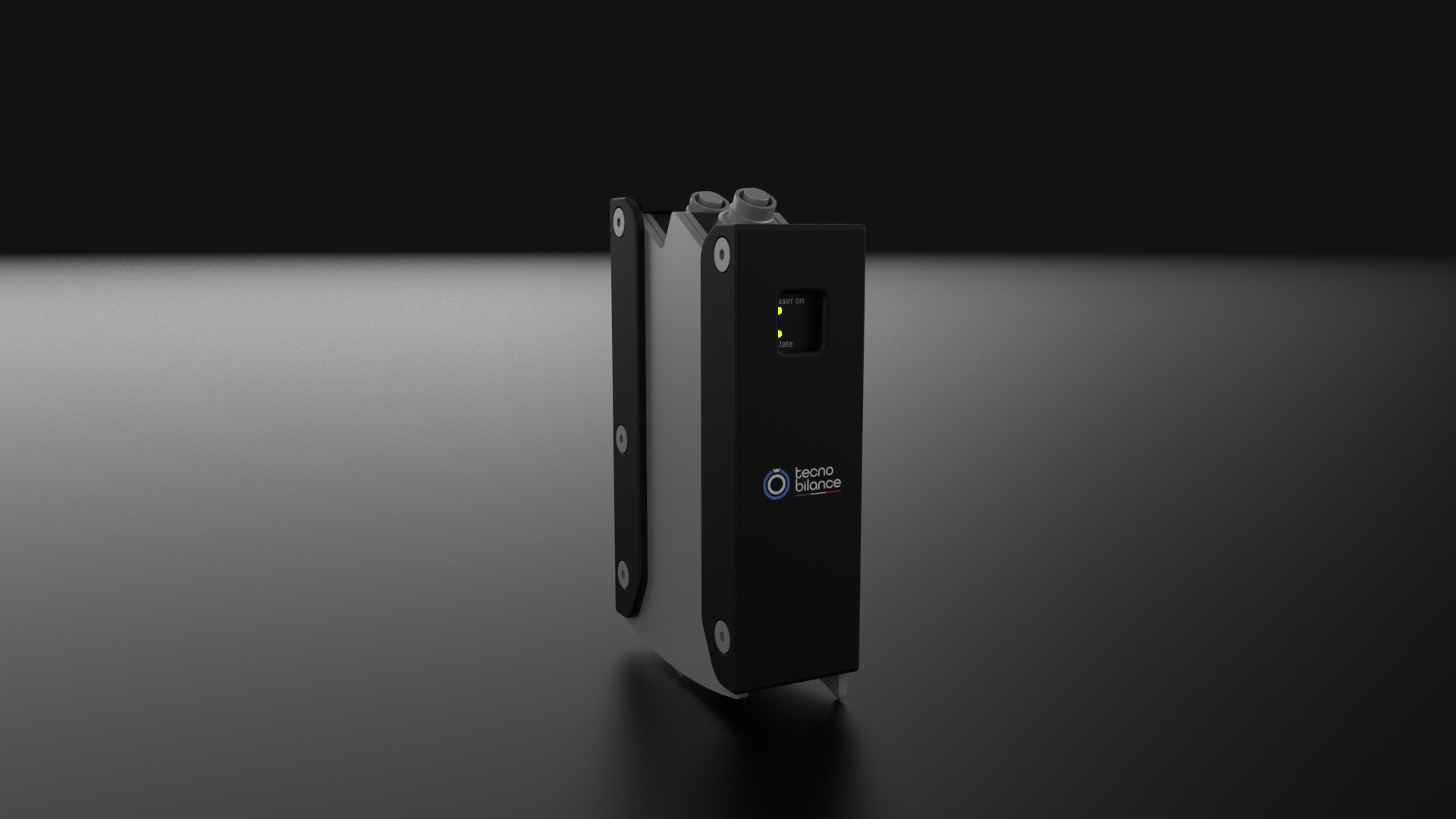

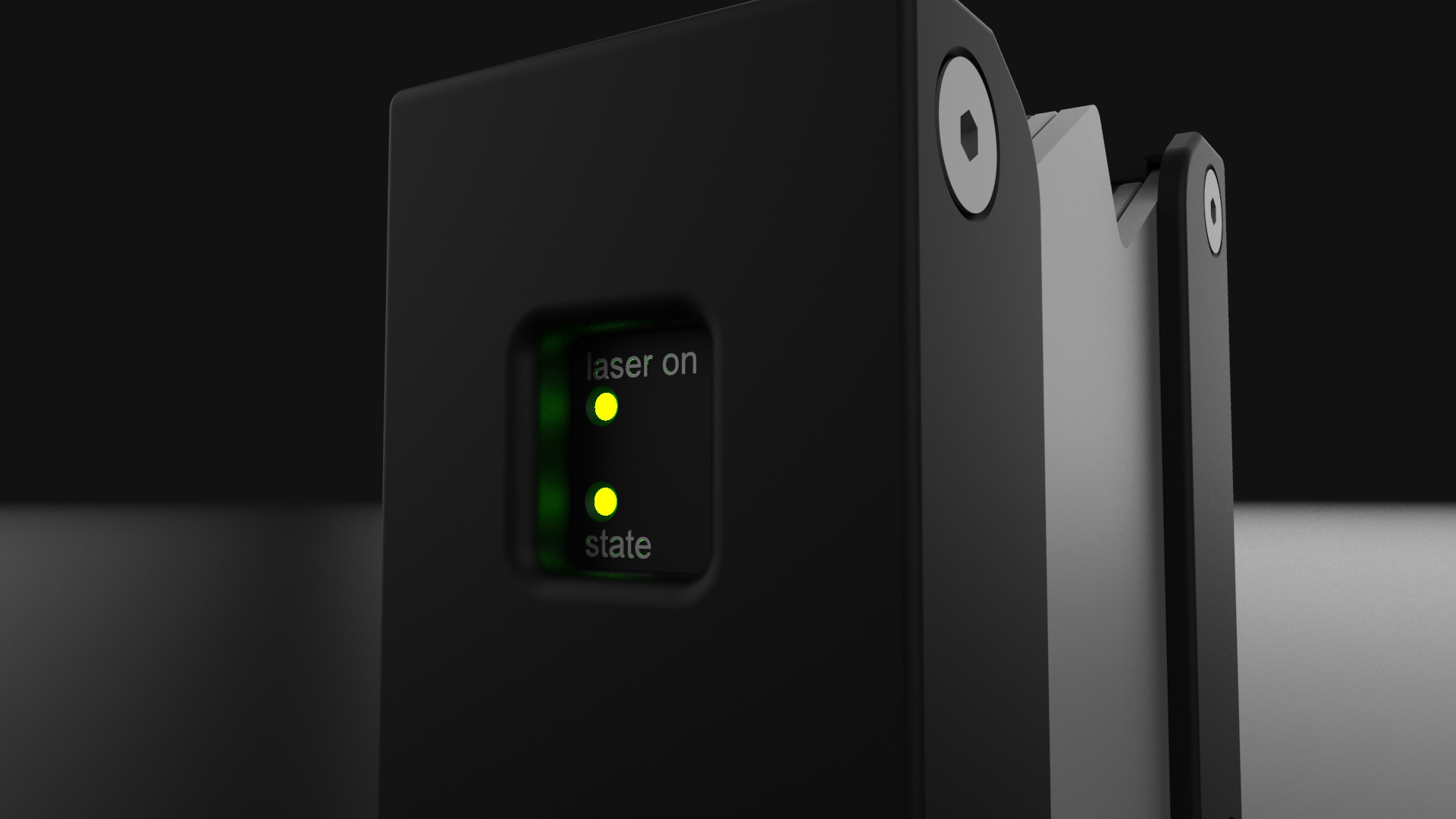

The laser profile detection system is a system designed to check the state of wear of the, cast iron or steel, grinding rolls, for permit preventive maintenance of the system and avoiding loss of yield. The instrument consists of a laser probe to be placed on the roller for detect the profile status. The probe is connected to a tablet where are install the software dedicated to data processing and storage of data.

The measurement of the profile gives the possibility to understand if the roller still in right conditions to work without losing efficiency, if is time to replace it or will give an indication to plan in advance the fluting maintenance interventions . The instrument use a sensor that scan the surface profiles through a accurate laser beam. The laser probe can be integrated with the FGM1250 fluting machine.

Package contents Dim: 555 x 428 x H 211 mm

  • Tablet
  • Tablet power supply
  • Touchscreen pen
  • USB Ethernet Adapter, USB Type C to RJ45 Ethernet
  • Network cable (3 mt)
  • UPS activation jumper
  • UPS power supply
  • Laser profilometer
  • Sensor connection cable (5 mt)
  • Use and maintenance manual (on the tablet)

Technical Details

Power: ≤8 mW
H: ≤52 W/m2
λ: 658 nm
Laser Class: 2M
Resolution Z Axes: 2 µm
Resolution X Axes: 0.039 mm
Reading Range: 25 mm
Power Supply: 24 VDC (POE)
Communication: Ethernet (Modbus TCP)
Linearity: ±0,10% FSO

ecifications

Screen Dimension: 12 inches
RAM: 8 GB
HD: 256 inches SSD
Connectivity: Bluetooth 5, Wi-Fi
Front Webcam: 2 MP
Rear Webcam: 5 MP
Operating System: Windows 10
External Storage: Card TF < 128 GB (excluded)
Slot TF Card: Yes
USB: 1*USB-A 3.0
HDMI: Yes
Type C: Yes
Microphone: Yes

Operating Environment

Protection Class: IP65 (Probe)
Operation Temperature: 0 ÷ 45°C (32 ÷ 113°F) Free Air
Umidity: 5 ÷ 95% (no condensation)

Technical Details

Power
≤8 mW
H
≤52 W/m2
λ
658 nm
Laser Class
2M
Resolution Z Axes
2 µm
Resolution X Axes
0.039 mm
Reading Range
25 mm
Power Supply
24 VDC (POE)
Communication
Ethernet (Modbus TCP)
Linearity
±0,10% FSO

ecifications

Screen Dimension
12 inches
RAM
8 GB
HD
256 inches SSD
Connectivity
Bluetooth 5, Wi-Fi
Front Webcam
2 MP
Rear Webcam
5 MP
Operating System
Windows 10
External Storage
Card TF < 128 GB (excluded)
Slot TF Card
Yes
USB
1*USB-A 3.0
HDMI
Yes
Type C
Yes
Microphone
Yes

Operating Environment

Protection Class
IP65 (Probe)
Operation Temperature
0 ÷ 45°C (32 ÷ 113°F) Free Air
Umidity
5 ÷ 95% (no condensation)
